Impinj E710 Chip UHF RFID Integrated Reader Long Range 0～30m Reader UHF RFID For Asset Access Management
Introduction
BRD-01LI is a UHF RFID reader with integrated 9dBic antenna. It is full compatible with ISO18000-6C protocol. The working frequency band covers CHN 920MHz～925MHz, FCC 902MHz ~ 928MHz and ETSI 865MHz ~ 868MHz. For the output power 0dBm ~ 33dBm is optional. It has the advantages of high portability, long recognition distance, fast reading speed, high accuracy, strong anti-interference ability, excellent protection performance and easy to installation.
Compared with the traditional fixed reader, this reader device has obvious advantages in terms of convenience and integration efficiency, so that customers do not need to consider the coordination of the reader and the antenna. It can be widely used in many fields such as warehouse management, personnel management, asset management, commercial retail and automatic vehicle identification.
Features
Impinj E710 inside
Built-in embedded operating system, customizable and scalable, convenient for customized development
supports multiple communication interfaces such as RJ-45/RS-232/RS-485
Built-in 9dBi circular polarized antenna
Industrial, easy-to-install I/O port connectors
Special application project custom interface / data transmission can be extended
Applications
Intelligent Vehicle Management such as vehicle access control management, parking lots, and automatic vehicle weighing industry.
Production automation, visualization management.
Logistics industry such as container management, pallet management.
Electronic tickets and personnel access control.
Asset access management.
Main Technical Performance Indicators
| Model | BRD-01LI |
| Hardware, OS and Firmware Management |
| Processor | ARM Cortex-M3 108MHz |
| Storage | Flash 128KB |
| Firmware upgrade | Demo software/Remote upgrade |
| SDK | Windows platform– .Net / .Net core / C++ / Java SDK |
| Physical Parameters |

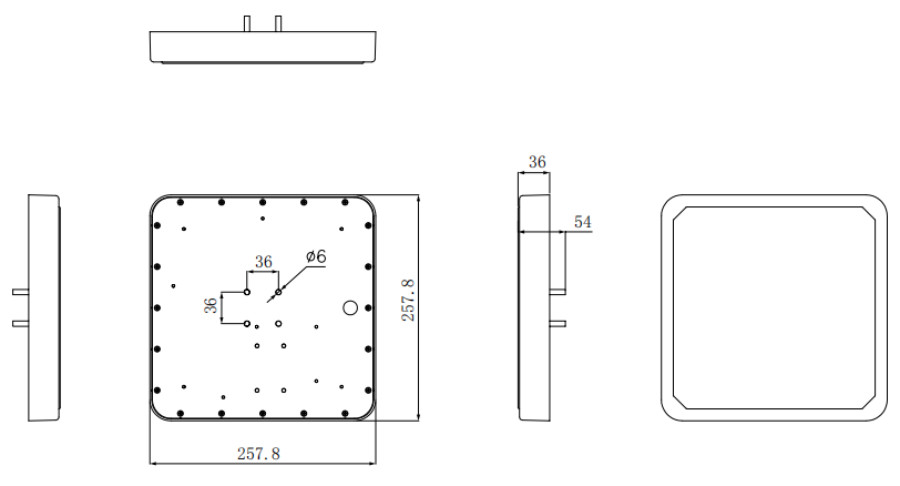

| Sizes | 258mm(L)*258mm(W)*36mm(H) |
| Weights | 1.2KG |
| Housing material | Aluminum+ABS |
| RFID |
| Chip | Impinj Indy E710 |
| Air protocol | ISO/IEC 18000-6B, 6C/EPC C1Gen2 |
| Frequency | CHN: 920MHz～925MHz, 840MHz～845MHz |
| FCC: 902MHz～928MHz |
| ETSI: 865MHz～868MHz |
| Built-in antenna | Circular polarization 9dBi, VSWR≤1.3:1 |
| Output power | 33dBm±1 dBm |
| Channel bandwidth | ＜200KHz |
| Frequency stability | ≤±10ppm |
| Reading range | 0m～30m (related to factors such as transmit power, antenna type, tag type and application environment) |
| Write distance | 0m～15m (related to factors such as transmit power, antenna type, tag type and application environment) |
| Label recognition speed | ＞800times/second |
| Features | Support RSSI/support multiple tags/intensive reading and writing/online upgrade/tag data filtering |
| Operating mode | Fixed frequency/frequency hopping selectable |
| Connection |
| Communication interface | RJ45, RS-232, RS-485, Wiegand 26/34/66 |
| I/O interface | 1 input, 1 12V, 2 5V output |
| Power supply | DC 12V/3.33A |
| Environmental Parameters |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -40℃～+85℃ |
| Operating humidity | 5%RH～95%RH (non-condensing) |
| Protection class | IP65 |
